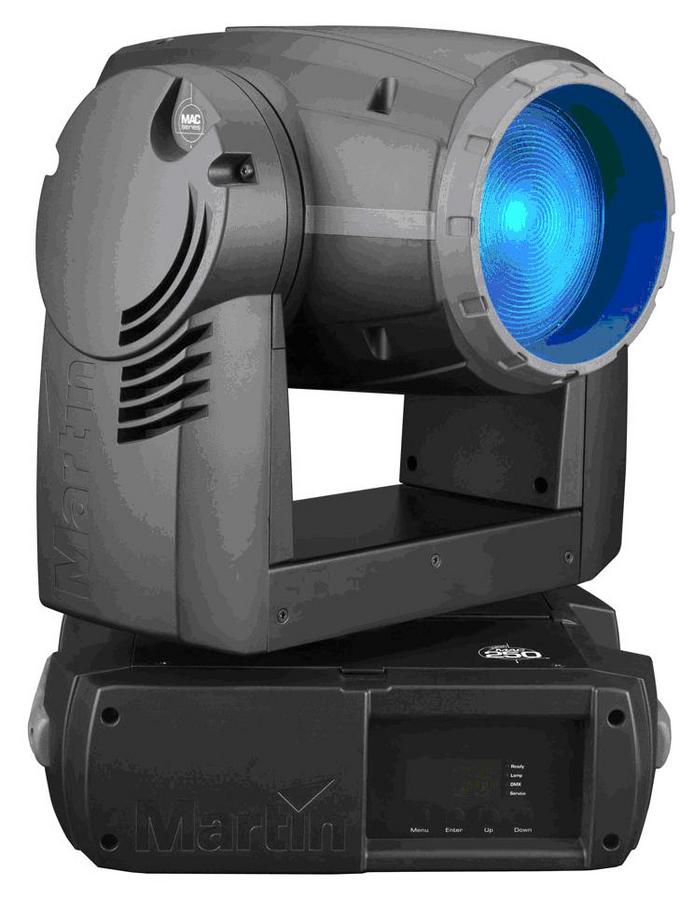

Martin Professional MAC 250 Wash light
SOURCE
Lamp: 250 W discharge
Base: GY 9.5
Approved models:
Philips MSD 250/2 (installed as standard) 3000 hr, 8500 K, 250 W
Osram HSD 250/78 3000 hr, 7800 K, 250 W
GE CSD 250/2 3000 hr, 9000 K, 250 W
Description
Measurements made at nominal voltage.
MAC 250 Wash™ Specifications 37
Fuses
Main fuse: 6.3 A / 250 V, time-delay – P/N 05020020
Fuse F1: 6.3 A / 250 V, time-delay – P/N 05020020
Fuse F2: 2.0 A / 250 V, time-delay – P/N 05020009
ELECTROMECHANICAL EFFECTS
Cyan filter: 0 – 100%
Magenta filter: 0 – 100%
Yellow filter: 0 – 100%
Color wheel: 6 colors plus open and split positions
Dimmer: 0 – 100%
Shutter: Variable from 0 – 14 flashes per second
Zoom diffuser: 0° – 16°
Pan: 540° in 0.013° steps
Tilt: 257° in 0.007° steps
APPROVALS
EU EMC: EN 55 103-1, EN 55 015, EN 61 547
EU safety: EN 60598-2-17
US safety: ANSI/UL 1573
Canadian safety: CSA C22.2 NO 166
CONSTRUCTION
Housing: UV-resistant fiber-reinforced composite
Ingress protection factor: IP 20
INSTALLATION
Orientation: any
Minimum distance to combustible materials: 4″
Minimum distance to illuminated surfaces: 20″
Minimum center-to-center distance between MAC 250 Wash fixtures: 16.2″
Martin Professional MAC 250 Wash rental hire in Orlando. This powerful yet compact and remarkably efficient wash light features extraordinarily fast and quiet movement, a variable frost filter for zoom effect and a CMY color mixing system with a complimenting color wheel. Product Weight: 50.5 lbs Dimensions: 14.8″L x 12.4″W x 21.2″H with tilt neutral
