103 inch Plasma Display Rental
The Huge 103 inch HD plasma display monitor rental makes a dramatic impact
Choose VGA Computer, DVI, HDMI, Component, Composite Video inputs

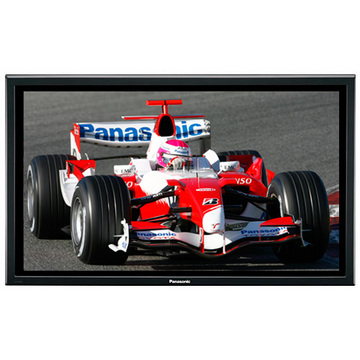

The giant 103″ Panasonic Plasma Display monitor rental creates a very large high impact impression for presentations or digital signage applications at convention trade shows, productions or special events. The 103 inch plasma monitor provides a large seamless visual presentation digital signage platform that is a perfect rentals alternative to small video walls and offer full HD 1920×1080 resolution. We offer this unit in standard 2D and have a limited selection of 3D units available for rental hire at your next event.
VGA Computer, DVI, HDMI, Component, Composite Video inputs
103″ Panasonic plasma display rental for convention trade shows, productions, special events and more
Display
Screen Size (Diagonal): 102.6-inch
Aspect ratio: 16:9
Effective Display Area: 89.3″W x 50.3″H
Resolution (H x V): 1,920 x 1,080 pixels (1pixel=3cells for R, G and B)
Pixel Pitch (H x V): 1.182 x 1.182 mm
Brightness: 1,000 cd/m2
Contrast Ratio: 5,000:1
Gradation: 4,096 steps (equivalent)
Signal Compatibility
Scan Rate
Horizontal frequency: 15 – 110 kHz
Vertical frequency: 48 – 120 Hz
PC Signal Compatibility: VGA, WVGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, WSXGA+, UXGA, WUXGA (VXGA and over resolution is compressed)
Supported Video Standards: NTSC, PAL, PAL 60, SECAM, Modified NTSC
Input / Output
Fixed Terminals
PC IN: Mini D-sub 15pin x 1 (Female) Analog RGB/Components, *Plug & Play (VESA DDC 2B)
AUDIO IN: M3 jack x 1
SERIAL
D-sub: 9-pin x 1(Male)
External control: RS-232C compatible
AUDIO OUT:
Description
RCA pin jack x 2(L/R)
Output level: VARIABLE
Interchangeable Terminals
(Slot1): Vacant
(Slot2:TY-FB10HMD): HDMI IN (HDMI x 2)
(Slot3:TY-42TM6A): COMPONENT IN (BNC x 3) Analog RGB / Component
AUDIO IN (L/R): RCA pin jack x 2
ELECTRICAL
Power Requirements: AC 240 V , 50 Hz/60 Hz
Power Consumption: 1,550 W
Power off condition: 0.1 W
Stand-by condition: Save Off 1.0 W, Save On 0.9 W
Cabinet Color: Black
ENVIRONMENTAL
Operating environment
Temperature: 32°F – 104°F
Humidity: 20 % – 80 % (Non condensation)
Altitude: 0 – 7,800 feet
Storage environment
Temperature: -4°F – 140°F
Humidity: 20 % – 90 % (Non condensation)
Altitude: 0 – 10,800 feet
RADIATION REGULATIONS: FCC Part 15, Class-B, ICES-003
SAFETY STANDARDS: UL6500, Ver.2
IR REMOTE CONTROL
Power Requirements: DC 3 V (2 x AA Size batteries)
Operation distance: approx. 23 ft in front of plasma display
Weight: approx. 4.6 oz including batteries
Product Weight: 485 lbs
Dimensions: 95.0″W x 55.9″H x 5.0″D
+++++++++++++++++++++++++++++++++++++++++++
Because of its size and weight, this monitor must be rented along with MediaScreen’s ScreenLifter 103 which is included with your rental as configured with monitor in shipping case all in one solution.
MediaScreen Screenlifter 103 Motorized Floor Stand for 103″ Displays
103 screen lifter with monitor from road case steps
At the touch of a button, a display of up to 500 pounds unloads itself from the flight case. Thanks to the precise, heavy-duty lifting mechanism, the ScreenLifter allows stepless adjustment of the height of the display, which can even be rotated into portrait orientation.
The ScreenLifter’s integrated shock absorbing system make storage and transport secure and convenient. The display is permanenty attached to the stylish design stand, significantly reducing the risk of damage during handling and saving time and labor costs.
The flight case fits through a standard doorway, making it possible to use the ScreenLifter in virtually any location. Setup of the ScreenLifter is entirely tool free, and operation simple using the control unit’s pre-programmed memory positions. The control panel features an LED display that shows the height of the bottom edge of the displayed image.
Product Weight: 492 lbs without display
Dimensions: 55.9″L x 31.6″W x 70.6″H
The super-sized Panasonic TH-103PF10UK 1080p panel is a show stopper for a wide range of professional applications including video production and screenings, life-size digital signage, executive boardrooms, live events, and control and command centers. Make an outstanding impact whether standalone or in a 5×5 Video Wall arrangement with its built-in processor. Because of its size and weight, this monitor must be rented along with MediaScreen’s ScreenLifter 103. Unit Weight: 485 lbs Dimensions: 95.0″W x 55.9″H x 5.0″D
